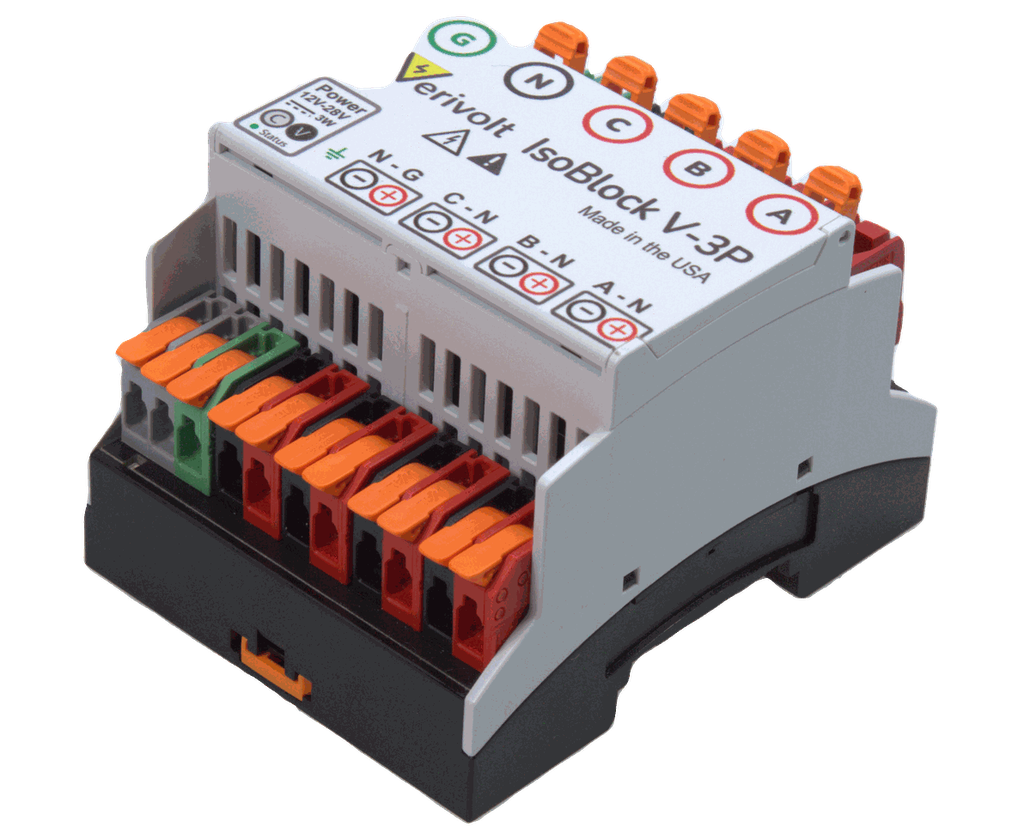

IsoBlock V-3P
Features1,500v Sustained And 5,000v Peak Isolation (1 Min)
3 Way Galvanic Isolation
Dc To 100khz Bandwidth
Din Rail Fixturing For Fast Setup
Drop In Voltage Sensing To Channel Isolation To Any Daq
Simple Setup
Documentation
Experience the simplicity of measurement with IsoBlock V-3P, a 3-phase voltage monitoring module with easy plug-and-play usability. It’s designed for engineers developing systems where high-voltage signals need to be monitored with accuracy and reliability. The IsoBlock V-3P covers multiple ranges from 150VAC to 1000VAC, with up to 100kHz bandwidth and as high as 0.1% accuracy.
Moreover, depending on the software configuration, the IsoBlock V-3P outputs phase-to-phase voltages for Delta configuration, or phase to-neutral for Wye configurations. Elevate your high-voltage signal monitoring capabilities with the IsoBlock V-3P, where accuracy meets convenience in a single innovative device.
Differential Divider Network
With an anti-aliasing filter on its output. It generates a 7VAC scaled down version of the input terminals.
Isolated References
The input of each specific IsoBlock channel has its own isolated reference and can be configured to suit user needs. One IsoBlock V-3P replaces 3 or 4 differential sensors depending on configuration, and only requires one cable for all four signals. It simplifies wiring while increasing channel densities, while delivering high performance for a low cost.
Plug-And-Play Usability
The IsoBlock V-3P's plug-and-play usability, enables easy re-configuration and speeds the pace of industrial product development and deployment.
