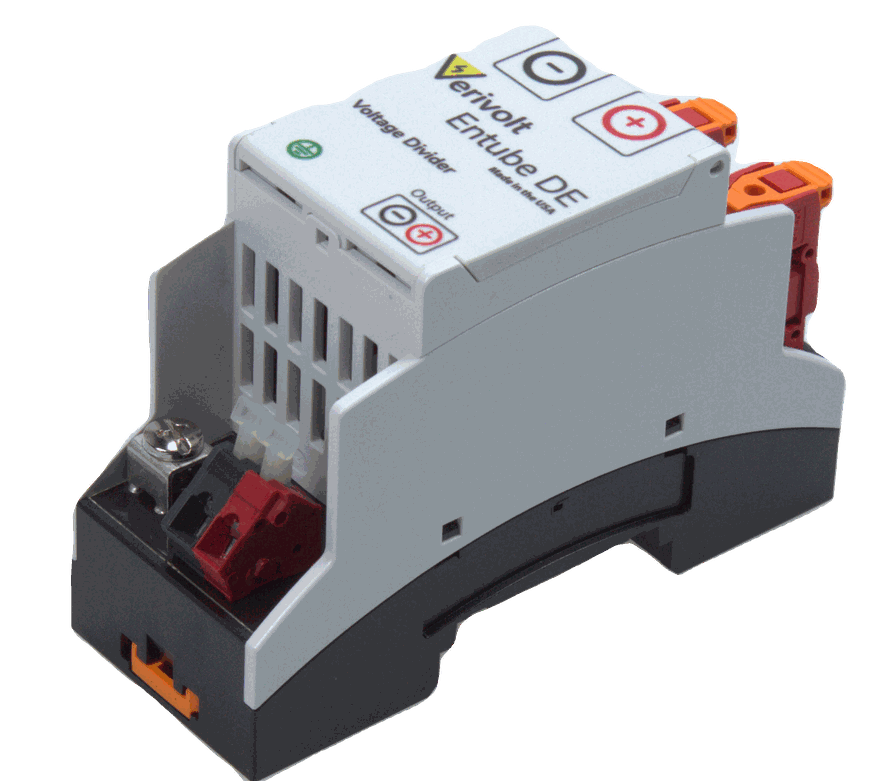

Entube DE
Features±1500v Input Dynamic Range On Each Terminal (Line-To-Line And Line-To-Ground)
±5v Or ±10v Output Dynamic Range (Differential Plus Common Mode)
5000v Withstanding Surge Voltage For 10 Seconds
Dc To 25khz Frequency Spectrum Of Operation
Designed For Interfacing With Differential Input Daqs
Industrial Grade Casing, 100% Electronic Technology
Sensor Works Without The Need For A Power Supply
Documentation
The Entube-de series is a family of voltage transducers designed for high quality differential measurements in a very compact form factor, and without need for power supplies. This series covers the ranges of ±50V to ±1500V with up to 50kHz bandwidth and up to 0.2% of signal accuracy.
The module outputs all line-to-line and line-to-ground signal pairs. Delta or Wye measurements can be made depending on the input configuration of the digitizer being used (NRSE or Differential).
Differential Divider
The Entube-de sensor operates as a differential divider RC-network with an anti-aliasing filter on its output. It generates a ±5V or ±10V scaled down version of the difference between the two input voltages, which can then be processed by a computer-based measurement system.
Ultra-compact form factor
The Entube-de is part of Verivolt’s sensing platform, which is aimed at allowing users to laid out multiple distributed sensors with a minimum of cabling required and no power supplies. This platform together with the Entube-de ultra-compact form factor, allows for very high channel densities, while delivering high performance for a low cost.
