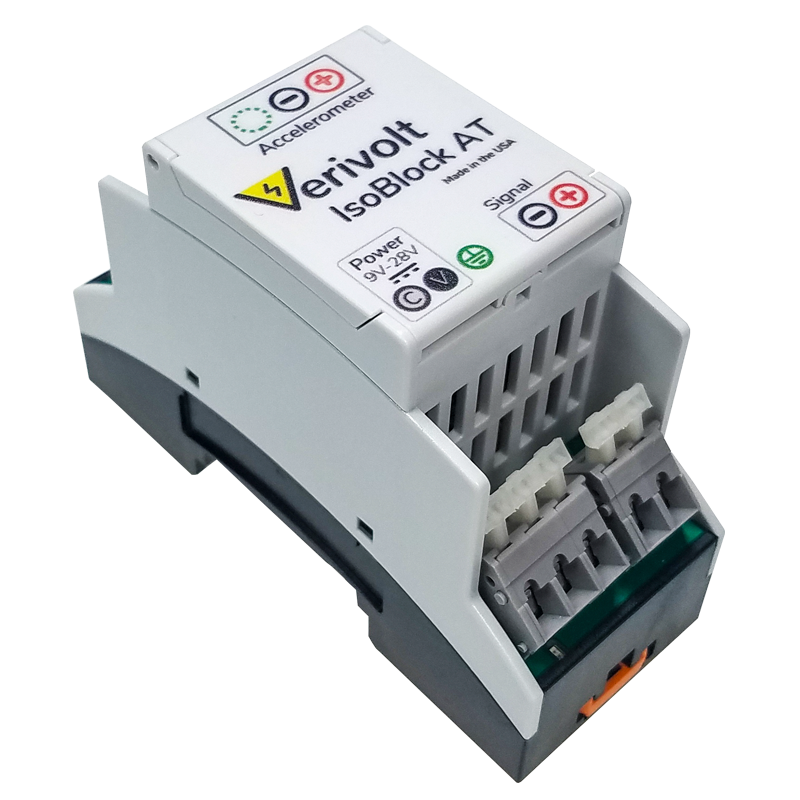

IsoBlock AT
Features1,200v Sustained And 5,000v Peak Isolation
1hz To 100khz Bandwidth
Din Rail Fixturing For Fast Setup
Drop In Accelerometer Powering And Isolation To Any Daq
Powering And Measuring Of Standard Accelerometers
Simple Setup
Three-Way Galvanic Isolation
Contact our Sales team to learn about this
Documentation
The IsoBlock AT-1c is a high-performance isolated amplifier for standard Accelerometers. It powers the accelerometer units while translates the output signal into a low impedance isolated output voltage signal. Each IsoBlock AT unit hosts an isolated channel that can be connected to an accelerometer and is isolated to 5kV (1min) or 1.5kV indefinitely. The output signal from the IsoBlock unit is referenced in respect to the ground channel of the user’s data acquisition system.
Three-Way Galvanic Isolation
The IsoBlock V modules provide a three-way galvanic isolation:
Channel to Channel
Primary to Secondary
Signal to Power
This galvanic barrier prevents unwanted currents from flowing along the circuit and adds a level of protection as well as allows to operate grounds with different potentials.
100% Electronic Technology
The use of advanced analog design and advanced materials makes devices more compact, reliable and cost effective. Our designs reduce the footprint and impact in the environment as more friendly materials are used.
Surge Protection
The devices are designed to survive and protect other equipment against harmful voltage surges. These depend on the duration but can go as high as 20x the rated measurement range for up to 5 microseconds. The devices will cap the outputs to a maximum slightly higher than the output range, saturate and not go over range therefore protecting any connected DAQ.
Optional Filtering
Verivolt's IsoBlock devices have a filtering stage that can be configured during manufacturing and serve as an anti-aliasing filter. This filter is a 3rd order filter and needs to be determined during the ordering.
